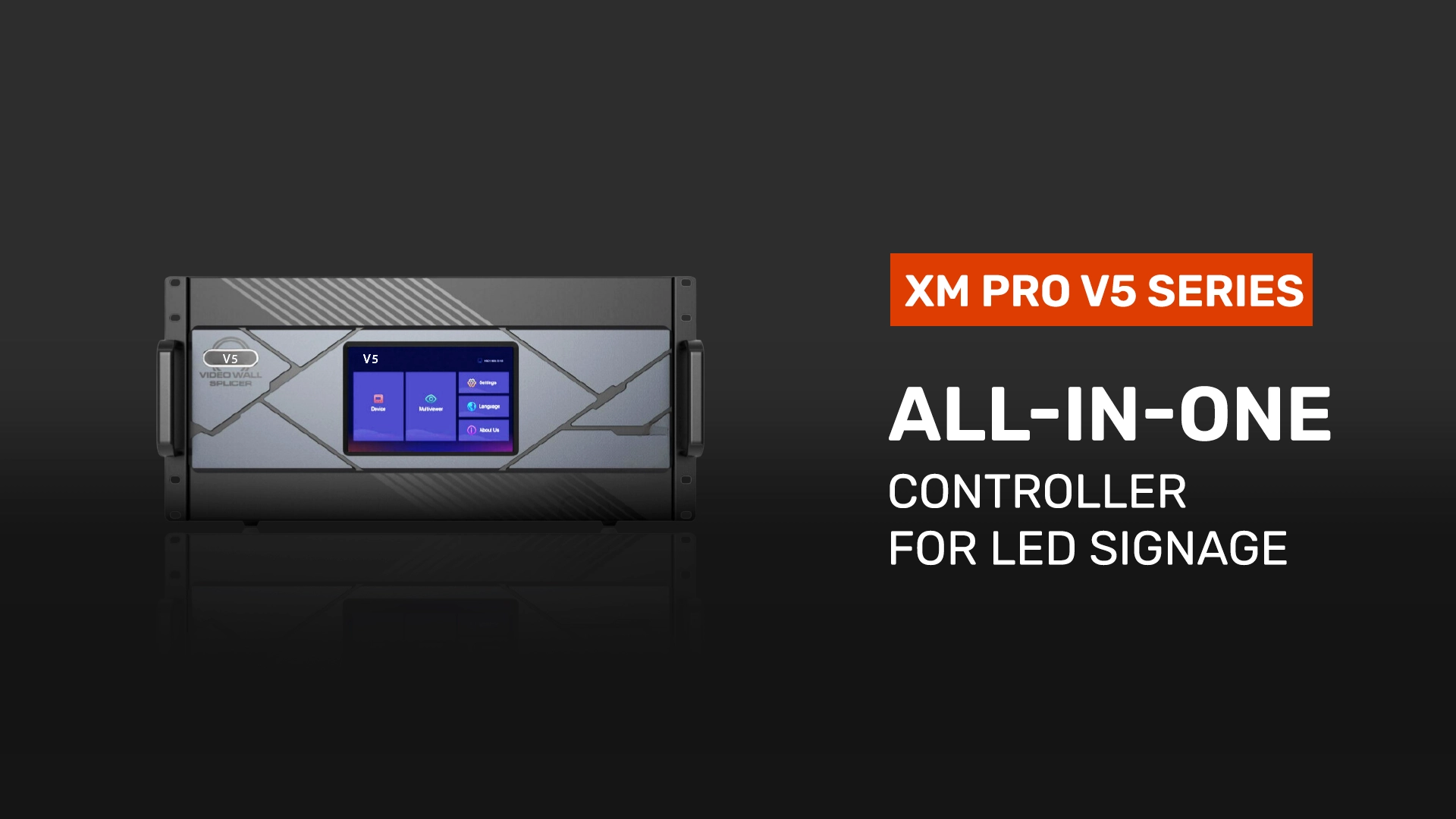

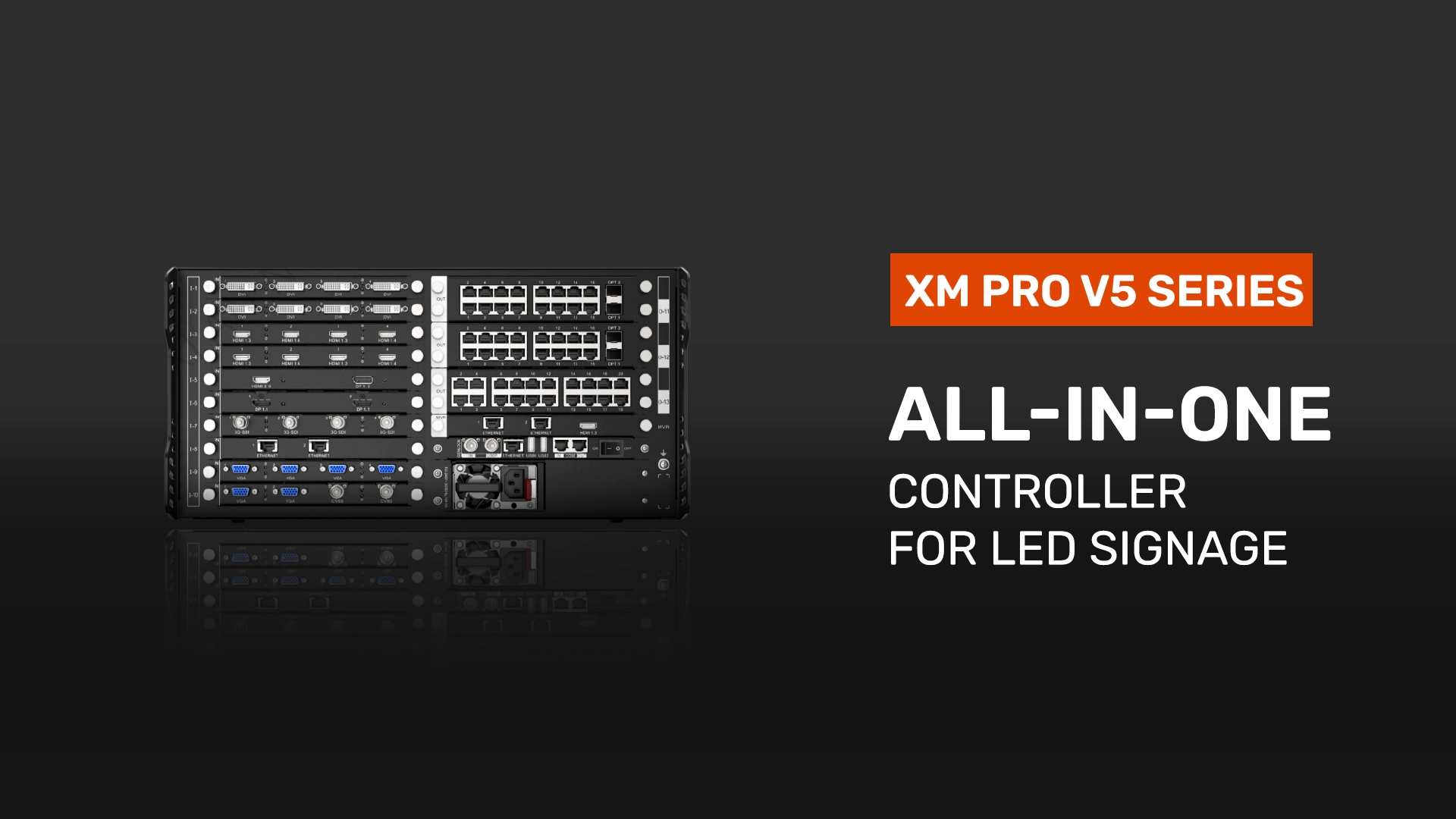

XM Pro-V5

The XM Pro V5 series features excellent image quality and is designed especially for fine-pitch LED screens. XM Pro V5 provides the industry-standard input connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs.

Download Brochure

Features

Modular & Plug-in Design

Modular plug-in architecture enables flexible configurations tailored to every installation requirement.

Multi-Screen Management

Centralized control simplifies seamless management across multiple displays and video walls.

Flexible Display Configuration

Supports diverse display layouts for maximum flexibility across various application environments.

Web-Based Control

User-friendly web interface enables quick, convenient system setup and remote management.

Status Monitoring & Redundancy

Intelligent monitoring and redundant power ensure reliable, uninterrupted system performance.

Applications

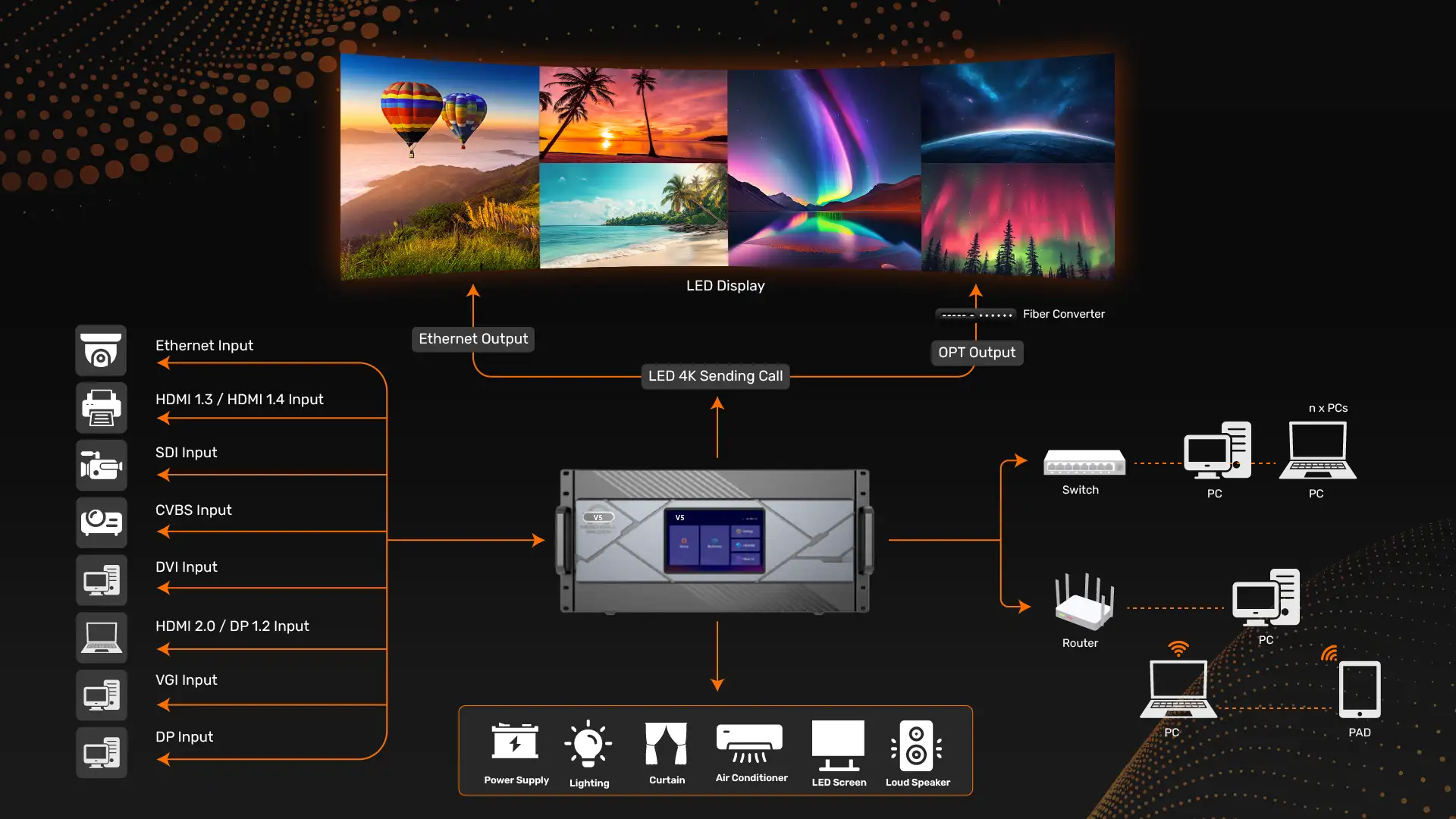

XM Pro-V5 connectivity and application diagram

Specifications

Product Model	XM Pro-V5
Rack Unit	5U
Max Loading Capacity (H_20×RJ45 Sending Card)	39 million pixels
Max Loading Capacity (H_4 OPT Output Card Enhanced)	78 million pixels
Max Output	Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
Standard Inputs	HDMI 1.3/1.4x8, HDMI 2.0×2
Standard Outputs	LED Out × 48
Max. Input Cards	10
Max. Output Cards	3
Optional Input Cards	HDMI 2K DVI 2K 3GSDI DP 2K HDMI2.0 4K + DP1.2 4K DP 4K HDMI 2.0 4K 12G SDI RJ45 IP input card Audio I/P + Audio O/P
Optional Output Cards	RJ45 sending card RJ45 + Fiber Optical RJ45 + HDMI (Monitoring Output) HDMI 2K DVI 2K HDMI 2.0 4K Fiber sending card 3G-SDI Output
Max. Layers	48 Layers
Max. Presets	2000 (Preset playlist playback supported)
Optional Power Supply	Yes
Central Control	TCP/IP and RS232
Power Consumption	400 W
