- For us, customers always come first. Through in‑house innovation, we design our solutions to meet customer needs, building their trust through genuine, high performance and reliable technology backed by our commitment to excellence.
☰
Xtreme Floor LED Displays blend durability, precision and immersive design to transform any
space. With high-strength tempered glass and advanced pressure-sensing technology, they deliver
real-time interactive responses and
long-lasting performance under heavy footfall. Their
vibrant, high-resolution visuals turn retail, events, exhibitions, gaming zones and
entertainment venues into engaging experiential
environments—creating memorable moments right
beneath your feet.
Our floor LED display comes in both interactive and non-interactive versions, providing complete flexibility depending on the application.

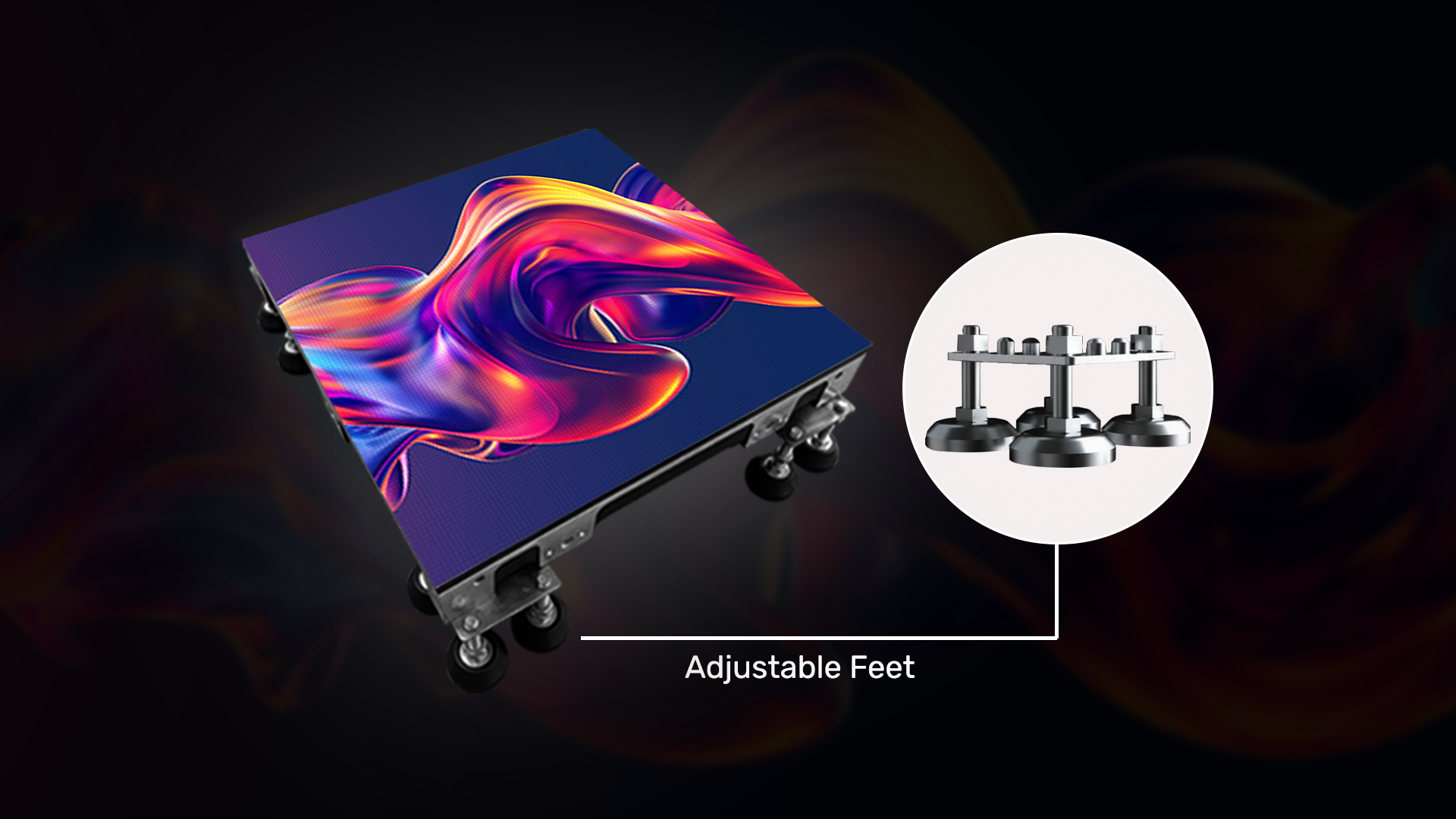

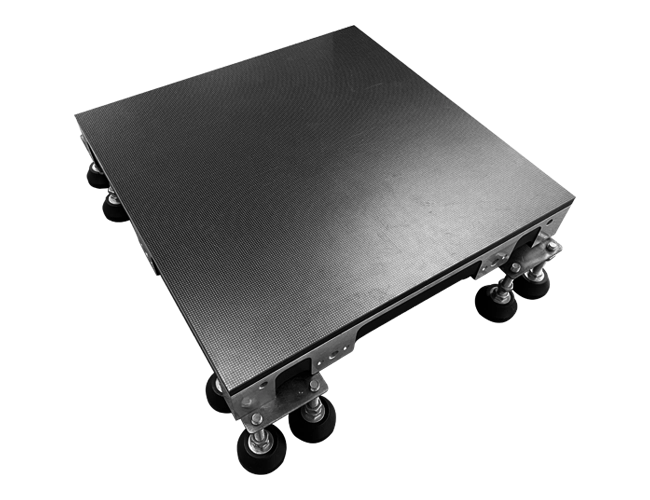

The specially designed adjustable foot system allows the LED floor to adapt seamlessly to uneven
surfaces. With a height range of
130 - 170 mm, installation becomes faster and more secure, ensuring a
stable and perfectly levelled display in any environment, be it for exhibitions, lobbies or large-scale
events

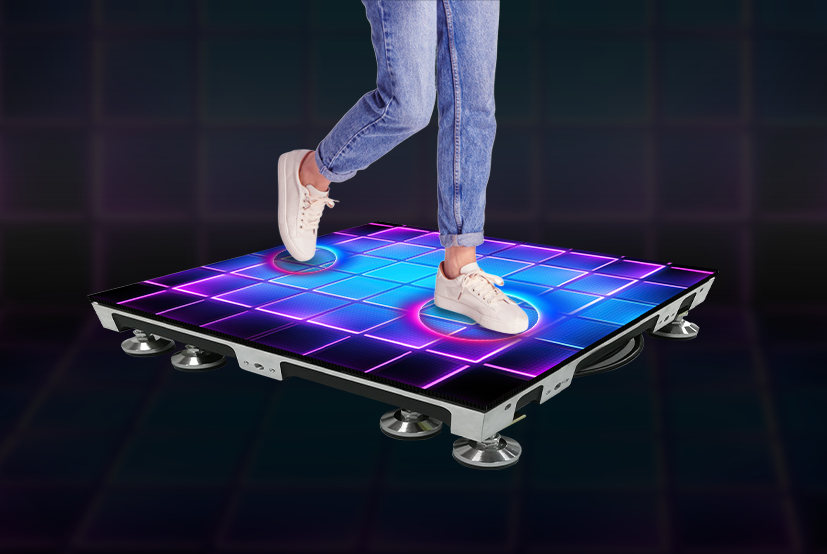

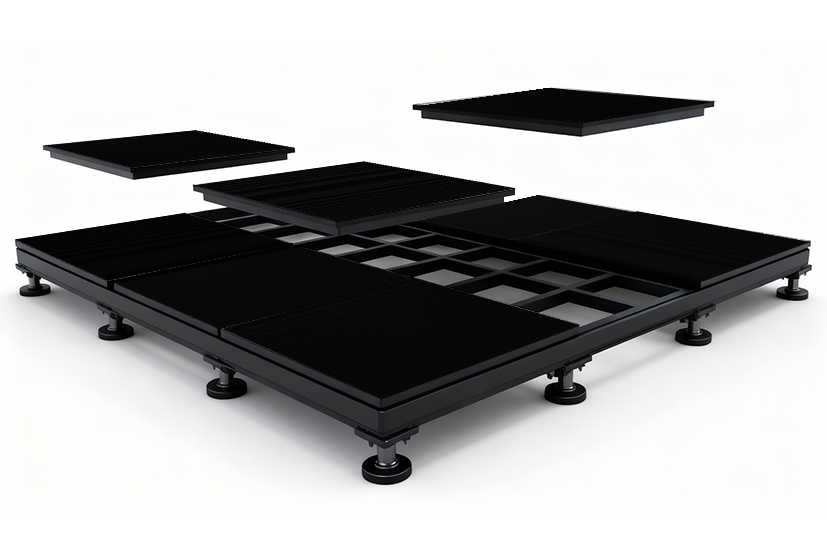

Each footstep is captured with unmatched accuracy. Every module is equipped with 8 built-in touch points and at least 3 sensors detecting every footstep, leading to ultra-fast and precise interaction
Our floor LED display integrates GOB (Glue on Board) technology with a strong load-bearing capacity of 0.8 tons/m², making it ideal for high-traffic, heavy-duty environments. The GOB layer protects the LED surface against dust, moisture and impact while preserving superior visual performance ensuring durability, stability and stunning visuals over long-term use
The LED floor features a durable PC (Polycarbonate) Mask surface that offers exceptional impact resistance, protecting against scratches, heavy use and environmental wear while maintaining clear visuals. When designed with PC Mask variants in pixel pitches such as 2.9mm and 3.9mm, the structure becomes even more suitable for high load-bearing applications, ensuring superior strength without compromising visual quality. Combined with a high load-bearing capacity of 1.5 tons/m², it is engineered to withstand extreme weight and pressure.
| Model Name | XM Terra-1.5 | XM Terra-1.8 | XM Terra-2.5 | XM Terra-2.9 | XM Terra-3.9 |
|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.56 | 1.86 | 2.5 | 2.9 | 3.9 |
| Type | GOB | GOB | GOB | PC MASK | PC MASK |
| Cabinet dimension (W x H) mm | 500 x 500 x 78 | 500 x 500 x 78 | 500 x 500 x 78 | 500 x 1000 x 78 | 500 x 1000 x 78 |
| Cabinet Material | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | MS | MS |
| Cabinet Weight (kg/m2) | 44 | 44 | 44 | 44 | 44 |
| IP Rating | Front IP 54 / Back IP 43 | Front IP 54 / Back IP 43 | Front IP 54 / Back IP 43 | Front IP 54 / Back IP 43 | Front IP 54 / Back IP 43 |
| Maximum brightness (nits) | 600 | 600 | 600 | 1500 | 1500 |
| Contrast | 6000:1 | 6000:1 | 6000:1 | 2000:1 | 2000:1 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray Scale (bits) | 14 | 14 | 14 | 14 | 14 |
| Maximum Power Consumption (W/m2) | 800 | 800 | 800 | 800 | 800 |
