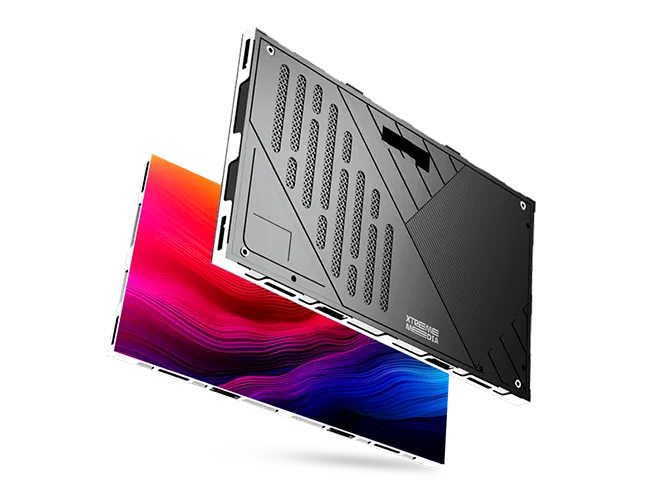

Xtreme Media's Helio Series is powered by advanced MIP (Micro LED in Package) Technology, delivering exceptional image quality, enhanced durability and superior visual performance. Designed for premium indoor applications, it offers outstanding colour accuracy, remarkable reliability and immersive viewing experiences for corporate, broadcast and commercial environments.
Download BrochureEngineered with a high contrast ratio of up to 40000:1 , the Helio Series delivers remarkable depth, enhanced grayscale performance and superior image precision. Paired with a high refresh rate, it produces vivid colours, smooth gradients and crystal-clear visuals for an immersive viewing experience.

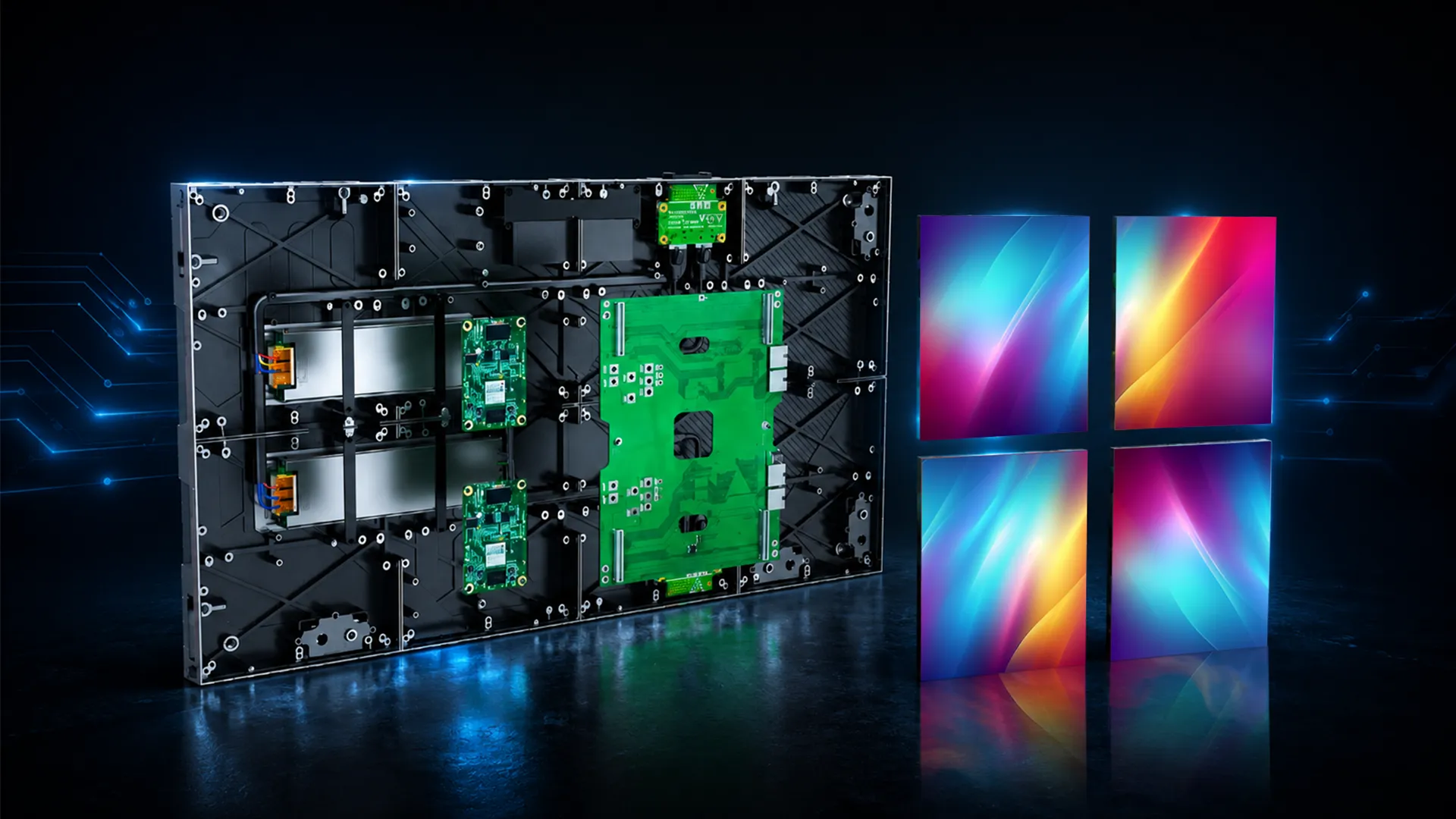

Designed for maximum convenience, the Helio Series supports complete front maintenance, enabling quick servicing and hassle-free installation in space-constrained indoor environments.
The Helio Series incorporates an intelligent redundancy architecture that enhances operational reliability and maintains continuous display performance. By reducing the impact of unexpected failures and enabling quick system recovery, it ensures dependable operation for demanding professional environments.

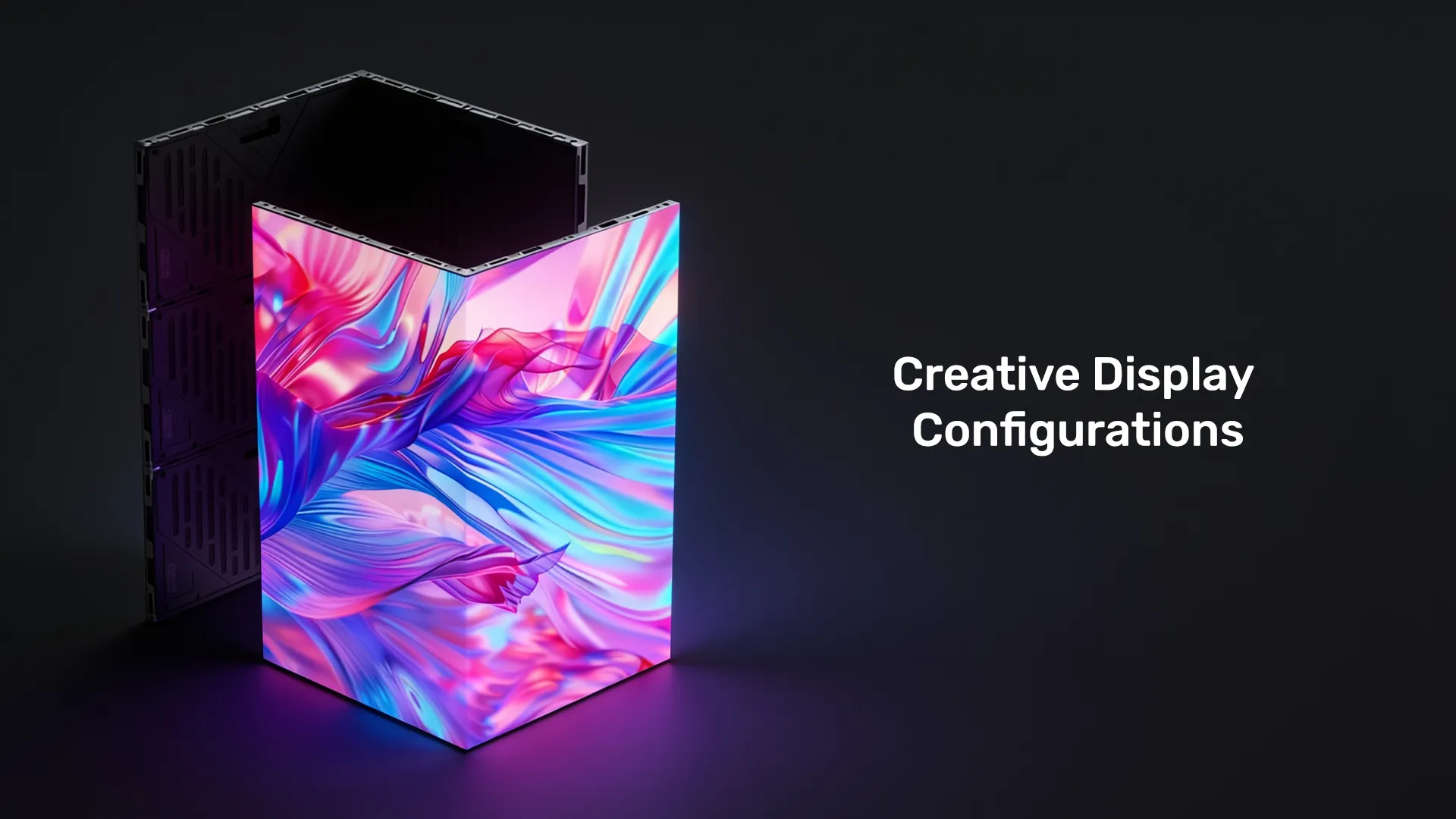

Engineered for versatile installations, the Helio Series enables seamless right-angle and arc configurations, empowering designers and system integrators to create unique and visually striking display solutions.
| Model Name | XM-Helio-0.93 | XM-Helio-1.25 | XM-Helio-1.56 |
|---|---|---|---|
| Pixel pitch (mm) | 0.93 mm | 1.25 mm | 1.56 mm |
| Cabinet dimension (W x H x D) mm | 600 x 337.5 x 27.5 | 600 x 337.5 x 27.5 | 600 x 337.5 x 27.5 |
| Weight (kg/m2) | 23 | 23 | 23 |
| Service access | Front | Front | Front |
| Maximum brightness (nits) | 800 | 1200 | 1200 |
| Viewing angle | 160x160 | 160x160 | 160x160 |
| Contrast ratio | Up to 15000:1 | Up to 15000:1 | Up to 15000:1 |
| Max power (W/m2) | 350 | 350 | 350 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Ingress protection | IP31 | IP31 | IP31 |
| Cabinet type | Die-Cast Al | Die-Cast Al | Die-Cast Al |
| Data Processing | 16 Bit | 16 Bit | 16 Bit |
