- For us, customers always come first. Through in‑house innovation, we design our solutions to meet customer needs, building their trust through genuine, high performance and reliable technology backed by our commitment to excellence.
Chip-on-Board (COB) technology is transforming Active LED displays by delivering enhanced durability, a seamless and refined surface finish. Xtreme Media’s COB displays further elevate the experience with an expanded colour, ultra-high resolution capability, high picture performance and an impressive contrast ratio of 20,000:1, ensuring exceptional depth, clarity and visual precision in every frame.

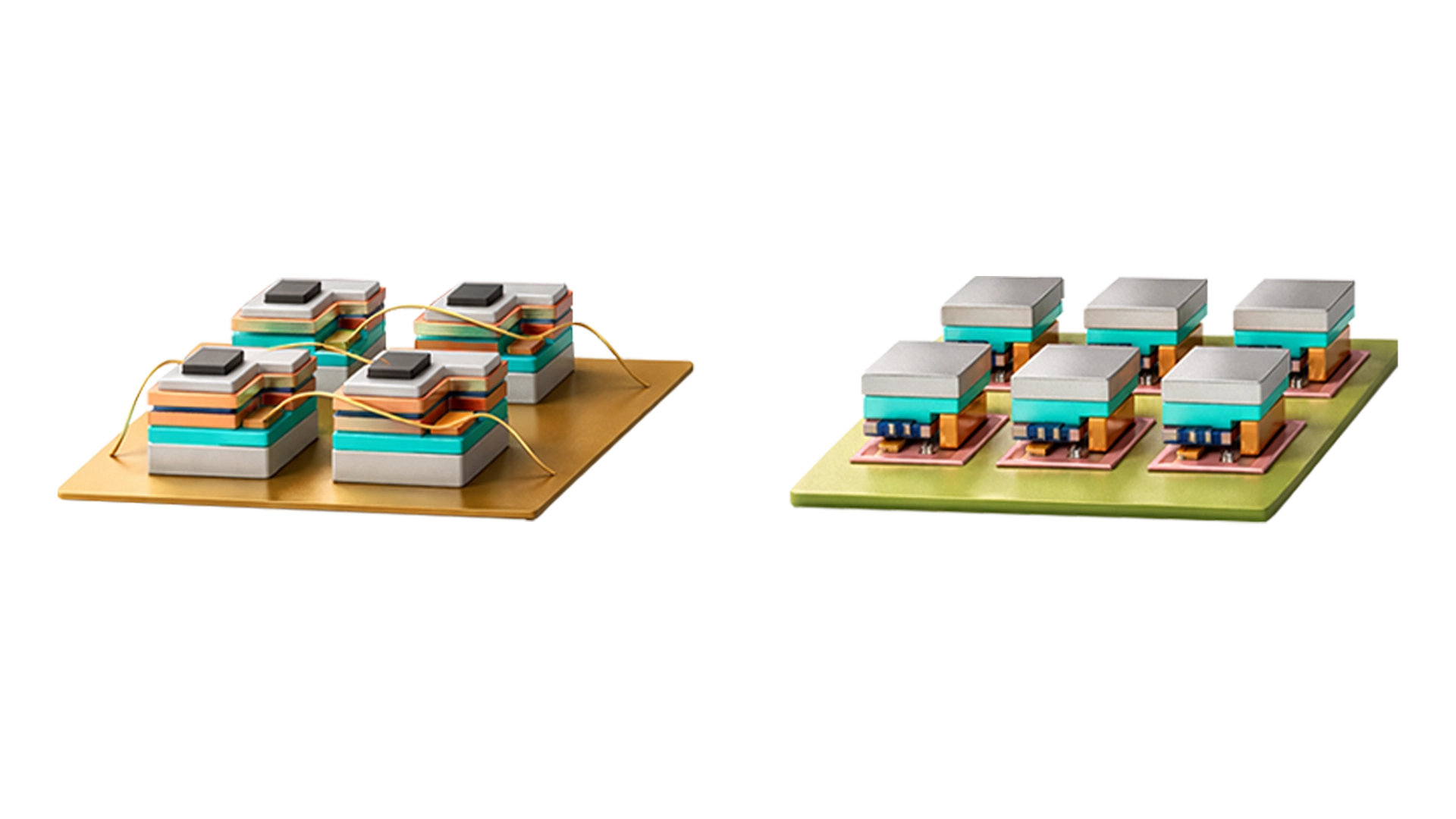

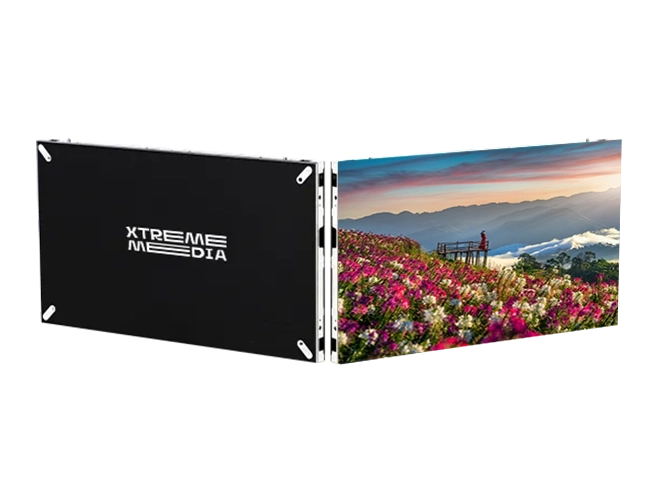

The IGNIS Series LED displays are engineered with advanced Flip Chip COB (Chip-On-Board) technology, delivering next-generation performance and reliability. Flip Chip architecture provides exceptional stability, durability and long-term performance. Designed for ultra-fine pixel pitch applications, enabling richer contrast, deeper blacks and highly lifelike visual reproduction.
Empower your operations with Vigilant-IoT™ technology, an advanced real-time monitoring system designed to continuously track and safeguard your LED display performance. Vigilant-IoT™ provides proactive diagnostics and instant alerts, ensuring optimal uptime, enhanced reliability and seamless display operation at all times.
| Model Name | XM IGNIS-1.25 | XM IGNIS-1.56 |
|---|---|---|
| Pixel pitch (mm) | 1.25 | 1.56 |
| Cabinet dimension (W x H) mm | 600 x 337.5 | 600 x 337.5 |
| Weight (kg/m2) | 21 | 21 |
| Technology | Common Anode | Common Anode |
| Maximum brightness (nits) | 600 | 600 |
| Contrast ratio | 20000:1 | 20000:1 |
| Max power (W/m2) | 330 | 270 |
| Refresh rate (Hz) | 3840 | 3840 |
| Ingress protection | IP60 front / IP50 back | IP60 front / IP50 back |
| Cabinet type | Die-Cast Aluminum | Die-Cast Aluminum |
| Data Processing | 13 Bit | 13 Bit |
| Certification | CE-EMC, CE-LVD, FCC, BIS | CE-EMC, CE-LVD, FCC, BIS |
