- For us, customers always come first. Through in‑house innovation, we design our solutions to meet customer needs, building their trust through genuine, high performance and reliable technology backed by our commitment to excellence.
☰
COB (Chip-on-Board) technology is redefining Active LED displays with enhanced structural strength. Xtreme Media’s COB LED displays further amplify the visual experience with an expanded ultra-high resolution capability, high picture performance and an exceptional contrast ratio delivering striking depth, brilliance and precision in every visual frame.
Common Cathode technology, integrated with advanced power-saving and high-efficiency power supplies, significantly reduces power wastage and optimizes energy consumption. This architecture enhances overall efficiency, lowers heat generation and ensures cost-effective performance.

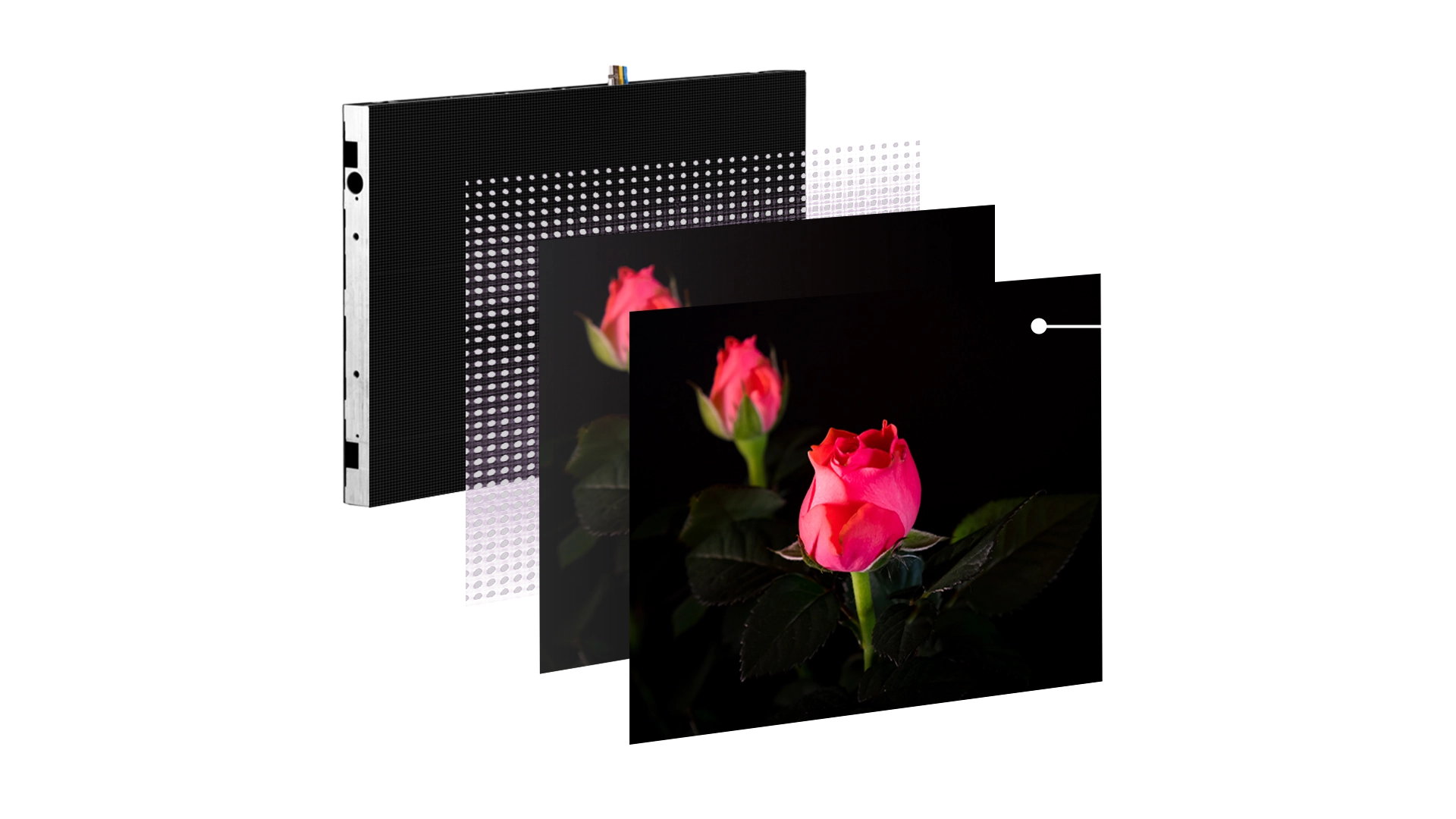

Enhanced with a specialized black polymer coating, the IGNIS Pro Series delivers a uniformly rich and deeper black finish that elevates visual depth and immersion. This advanced surface treatment significantly enhances contrast levels, intensifies color vibrancy and refines overall picture clarity.

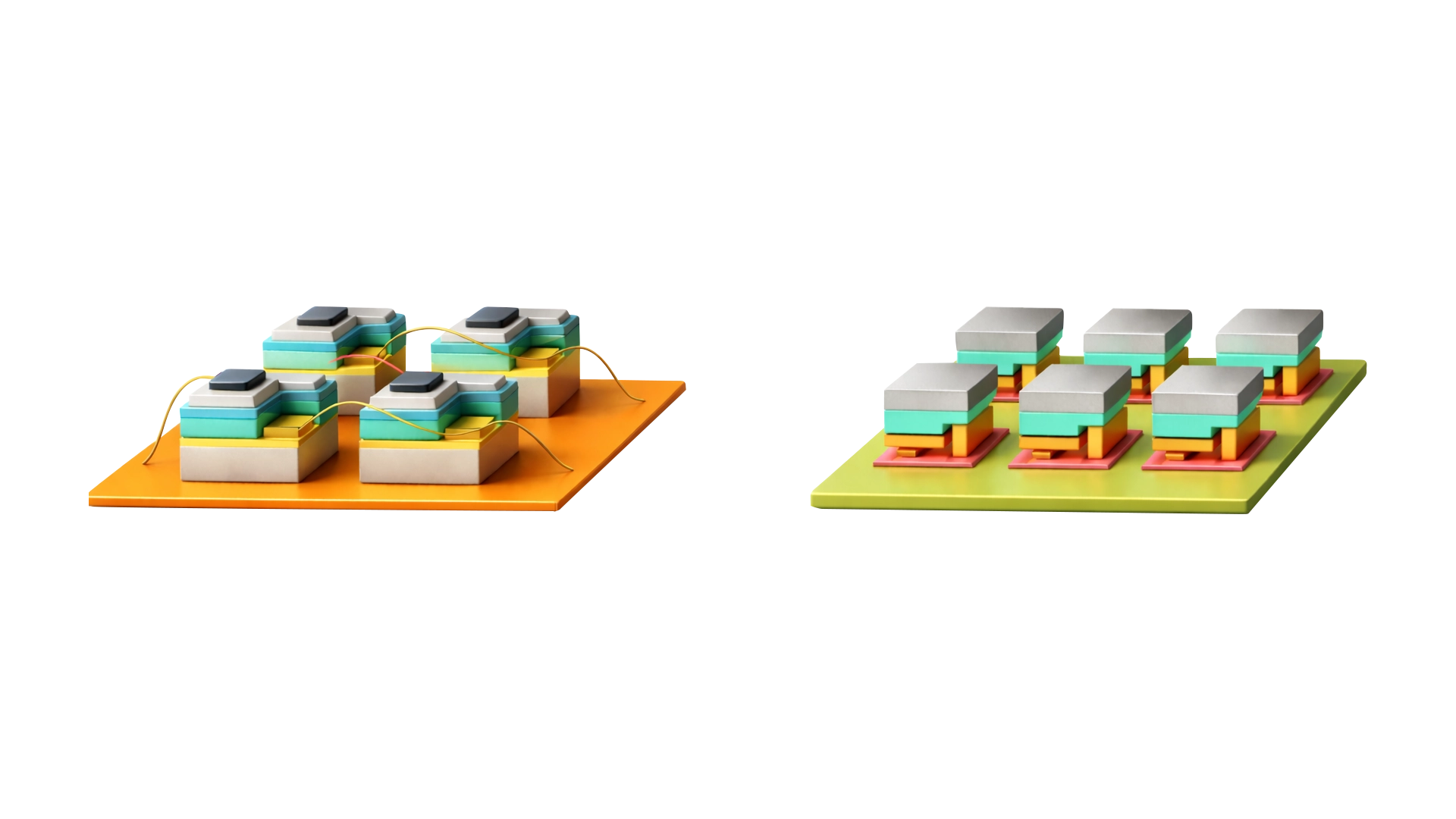

These LED displays are built on advanced Flip Chip COB (Chip-On-Board) technology for RGB color chips, delivering enhanced performance at every level. By optimizing thermal management, strengthening electrical efficiency, increasing pixel density and ensuring superior color uniformity, Flip Chip architecture enables exceptional stability, durability and long-term reliability.
Take command of your display performance with Vigilant-IoT™ technology — an intelligent, real-time monitoring system designed to detect and report critical component issues before they escalate. From voltage surges and pixel malfunctions to cable faults and temperature variations, Vigilant-IoT™ continuously tracks key parameters, enabling proactive maintenance, minimizing downtime and ensuring uninterrupted, peak LED display performance.
High-end display applications demand minimal failure risk and rapid recovery capabilities. Our fine pitch LED screens are engineered with integrated backup power and redundant data systems, significantly reducing the likelihood of total failure or screen blackout.
Engineered for superior visibility, our fine pitch LED display delivers brightness levels of up to 1200 nits, ensuring sharp, vibrant visuals even in high ambient lighting conditions. This enhanced luminance capability preserves color accuracy, contrast depth and image clarity, making the display ideal for well-lit indoor environments where consistent performance and visual impact are critical.
| Model Name | XM IGNIS PRO - 0.9 | XM IGNIS PRO - 1.25 | XM IGNIS PRO - 1.56 |
|---|---|---|---|
| Pixel pitch (mm) | 0.9 | 1.25 | 1.56 |
| Cabinet dimension (W x H) mm | 600 x 337.5 | 600 x 337.5 | 600 x 337.5 |
| Weight (kg/m2) | 23 | 23 | 23 |
| Technology | Common Cathode | Common Cathode | Common Cathode |
| Maximum brightness (nits) | 1200 | 1200 | 1200 |
| Contrast ratio | 40000:1 | 40000:1 | 40000:1 |
| Max power (W/m2) | 350 | 320 | 275 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Ingress protection | IP60 front / IP50 back | IP60 front / IP50 back | IP60 front / IP50 back |
| Cabinet type | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum |
| Data Processing | 19 Bit | 19 Bit | 19 Bit |
| Certification | CE-EMC, CE-LVD, FCC, BIS | CE-EMC, CE-LVD, FCC, BIS | CE-EMC, CE-LVD, FCC, BIS |
The world’s first company in the LED display industry to provide a warranty promise that ensures protection of your investment, reputation and peace of mind. We are the only Indian LED display manufacturer to comply with 12 international quality standards.
.webp)
.webp)
.webp)
.webp)
.webp)
*7-year warranty is subject to specific product line or series.
